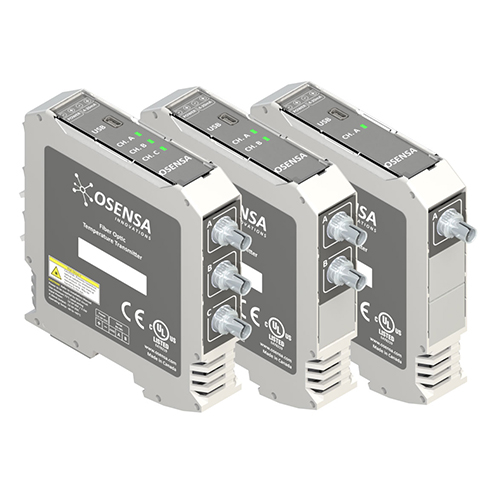

FTX-300-LUX+ Fiber Optic Temperature Transmitter
MRI, Microwave, Industrial and Research Temperature Measurement
Scalable High-Performance Fiber Optic Temperature Sensing The FTX-300-LUX+ fiber optic signal conditioner offers exceptional value combined with industry leading speed and accuracy. Whether your application requires one, two, or three sensing channels, the FTX-300-LUX+ transmitter is ideally suited for demanding research applications in MRI, microwave, and high electro-magnetic field environments. It can read optical sensors with tip diameters as small as 350 microns over distances up to 50 meters. It connects quickly to your personal computer with a standard USB cable to provide real-time temperature trending and data logging with the optional OSENSAView Pro software or LabView VI. The 4-20mA analog outputs have 16 bit resolution with configurable alarms for easy connection to a PLC, temperature controller, solid state relay, or digital display. Multiple signal conditioners can be connected in series and mounted on a standard 35mm DIN rail.
